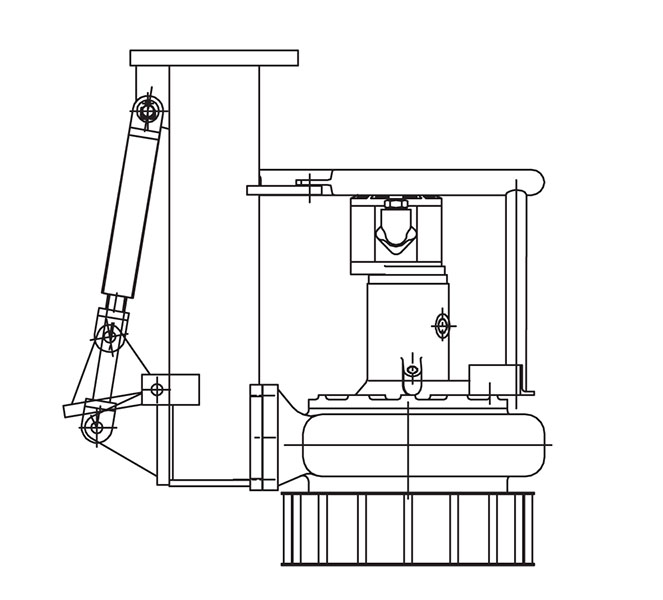

The Heidra® HS150SG is a versatile, 6" (150 mm) hydraulic submersible® pump capable of passing large solids up to 3" (75 mm), stringy materials and slurries. A remotely-operated slurry gate allows the pump to act as a mixer, ideal for pumping thick, viscous, solids-laden sludges, such as those found in WWTP digesters, environmental clean-ups and API separators at refineries.
Unit of Measure

Specifications

Brands

 N/A Heidra®

Inlet

 N/A 6 in. (150 mm) 125#

Weight

 N/A 460 lb209.1 kg

Height

 N/A 34 in864 mm

Width

 N/A 32 x 19 in813 x 483 mm

Hose Ports

 N/A 1 in25 mm

Pump Body

 N/A Cast Iron

Hydraulic Oil @ 100 Degree Fahrenheit (32 Degree Celsius)

N/A 214 to 320

Standard Input Flow

 N/A 15 to 30 USGPM0.95 to 1.9 L/s

Maximum Operating Pressure

 N/A 3500 psi241 bar

Power Source

 N/A Any Open Center Hydraulic System

Series

 N/A HS

Submersible Pump

Solids Handling Diameter

 N/A Up to 5 inUp to 125 mm

Discharge Flange - ASA 150

 N/A 6 in150 mm

Materials

Impeller

 N/A Cast Chromium Steel

Wearplates

 N/A Cast Iron

Pump Shaft

 N/A Medium Carbon Steel

Note

N/A Heidra® is a registered trademark of Godwin Pumps of America, Inc..

Specifications and illustrations are subject to revision without notice. © Copyright 2005 Godwin Pumps of America, Inc. All rights reserved.
